Key Specifications

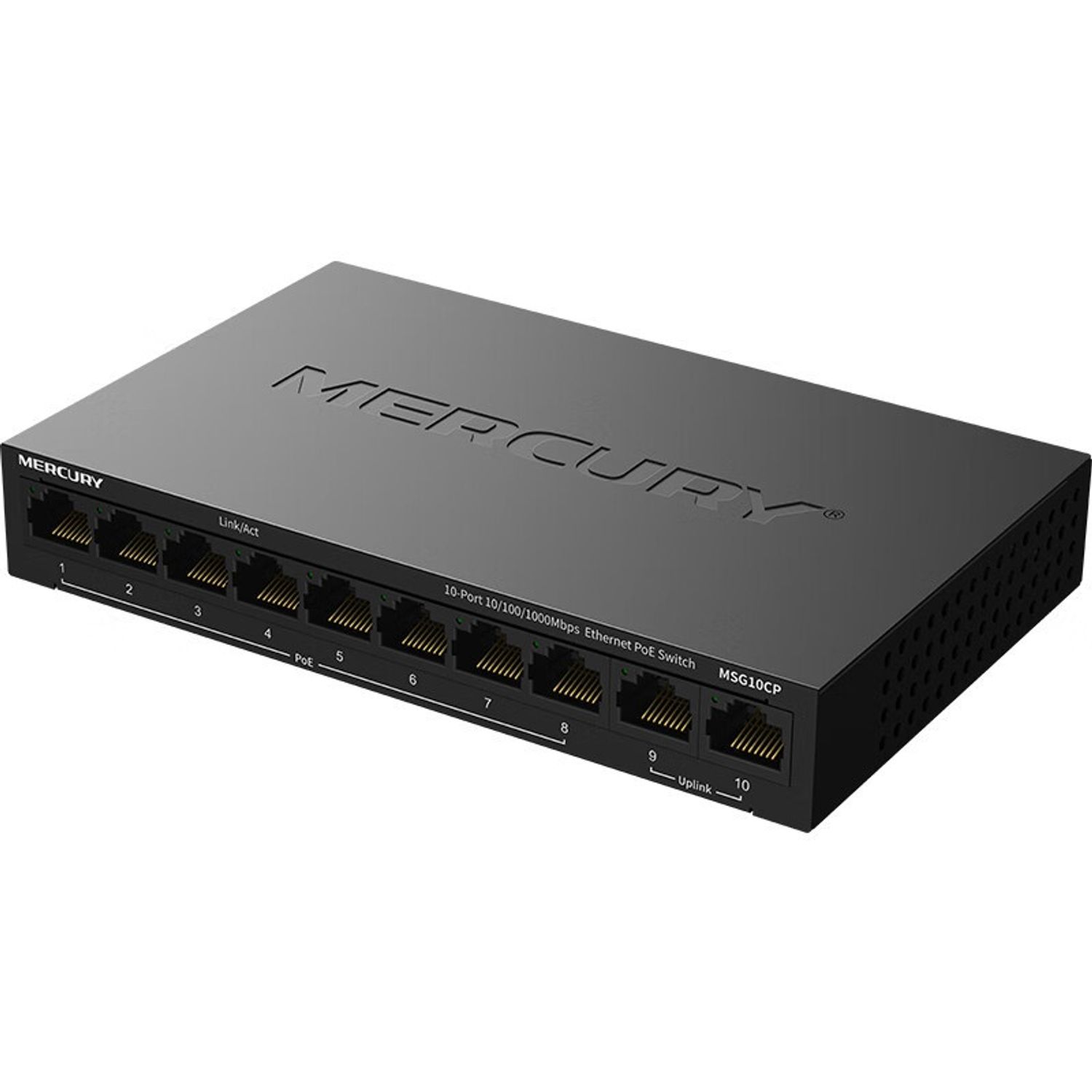

• Port Configuration: It features 10 Gigabit (10/100/1000Mbps) RJ45 ports, consisting of 8 PoE ports and 2 Gigabit Uplink ports.
• Power Output:
• Total PoE power budget is 85W.
• Port 1 supports up to 30W, while ports 2–8 support up to 15.4W each.
• Compatible with IEEE 802.3af/at standards.
• Extended Range: Includes a "Network Extension Mode" switch. When enabled, it limits the rate of ports 1–4 to 10Mbps but extends the transmission and power delivery distance to over 260 meters.
• Design: It is an unmanaged plug-and-play device with a fanless metal housing for silent operation.

Usage and Benefits

• Simplified Wiring: Uses a single Ethernet cable to transmit both data and power to devices like IP cameras, wireless access points, and VoIP phones.
• Reliability: Features overload protection and temperature control to ensure stable 24/7 operation.
